0.50mm Hi-Speed Board TO Board Female Connector SMT Type
Board/Wire to Board
SPECIFICATION
Material
- Insulator: LCP, UL94V-0, Black Color - Contact: Phosphor Bronze
Electrical
- Insulation Resistance: 5000MΩ Min - Contact Resistance: 15mΩ Max - Dielectric Withstanding Voltage: 525V AC for 1 minute - Current Rating: 1 AMP - Ground Plane: 7.8 AMP - Voltage Rating: 125V AC - Operating Temperature: -55°C ~ 125°C * Mates with: HBB05S1-XXXXP01A2R
Request Quote

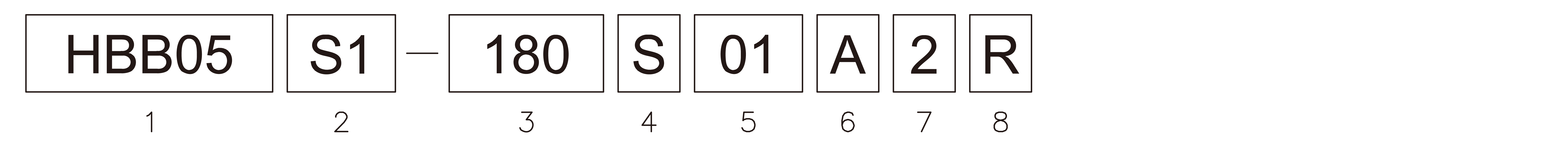

ORDER INFORMATION
A01.13
1.SERIES NO. HBB05:Hi-Speed 0.50mm Board to Board 2.05mm High 2.TERMINAL VERSION S1:SMT 3.NO. OF CONTACTS 60, 120, 180, 40P, 80P, 120P (20 pairs per bank) 4.CONNECTOR TYPE S:Female 5.MATED HEIGHT 01:5mm 6.CONTACT PLATING A:Selective 8u" Gold Plated 7.PACKAGING 2:Tape & Reel 8:Film in Tape & Reel 8.R:RoHS
