0.50mm ZIF FPC Connector R/A SMT Bottom Contact Type
Header, Jumper & FPC
SPECIFICATION
Material
- Insulator: LCP, UL94V-0 Rated - Contact: Phosphor Bronze
Electrical
- Insulation Resistance: 100MΩ Min - Contact Resistance: 20mΩ Max - Dielectric Withstanding Voltage: 500V AC for 1 minute - Current Rating: 1 AMP AC/DC - Voltage Rating: 125V AC/DC - Operating Temperature: -20°C ~ 85°C
Request Quote

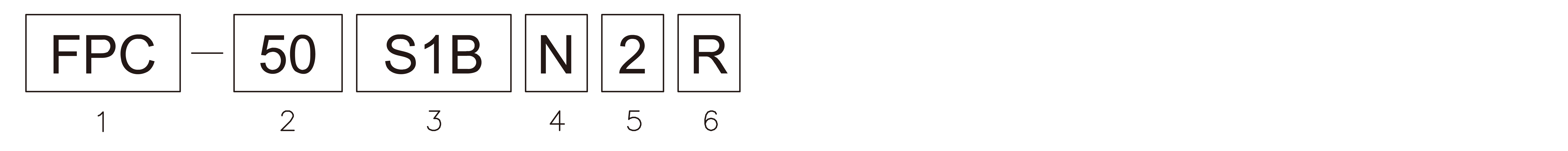

ORDER INFORMATION
A02.04
1.SERIES NO. FPC:FPC Connector 2.NO. OF CONTACTS 04-60 3.TERMINAL VERSION S1B:SMT R/A Type (Bottom Contact) 4.INSULATOR COLOR N:Black 5.PACKAGING 2:Tape & Reel 6.R:RoHS
