1.27mm Box Header Connector SMT Type
Header, Jumper & FPC
SPECIFICATION
Material
- Insulator: Nylon 46, UL94V-0 Rated - Contact: Brass - Board Lock: Copper Alloy
Electrical
- Insulation Resistance: 1000MΩ Min - Contact Resistance: 20mΩ Max - Dielectric Withstanding Voltage: 500V AC for 1 minute - Current Rating: 1 AMP Max - Operating Temperature: -65°C ~ 125°C * Mates with: 1.27mm Female Header Series
Request Quote

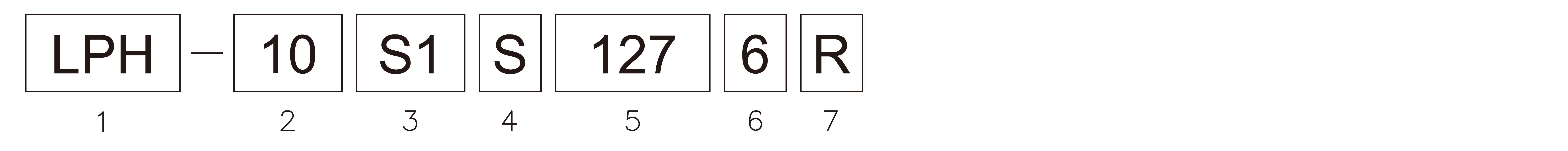

ORDER INFORMATION
A05.01
1.SERIES NO. LPH:Without Peg LPHL:With Board Lock LPHP:With Peg 2.NO. OF CONTACTS 10-100 3.TERMINAL VERSION S1:SMT 4.CONTACT PLATING S:Selective Gold Plated 5.Pitch:1.27mm 6.PACKAGING 2:Tape & Reel 3: Tube 5:Cap in Tape & Reel 6:Cap in Tube B:Metal Cap in Tape & Reel C:Metal Cap in Tube 7.R:RoHS
