1.27mm Pin Header R/A Type
Header, Jumper & FPC
SPECIFICATION
Material
- Insulator: Nylon 6T, UL94V-0 - Contact: Brass * Mates with: 1.27mm Female Header
Request Quote

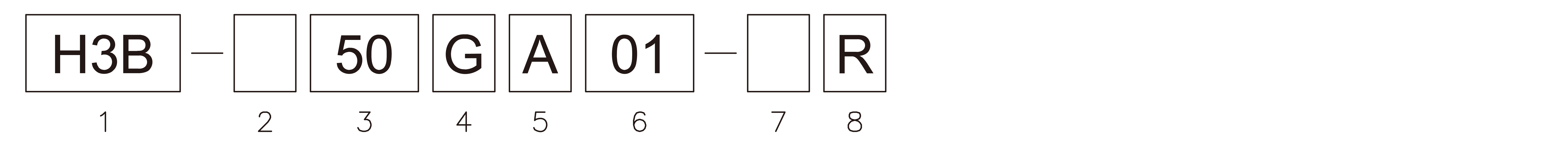

ORDER INFORMATION
A04.10a
1.SERIES NO. H3B:Single Row H4B:Dual Row 2.SQ PIN Blank:0.40 6:0.46 3.NO. OF CONTACT 02-50 04-80 4.CONTACT PLATING G:Gold Plated S:Selective Gold Plated T:Tin Plated 5.PLASTIC HEIGHT "H" A:1.5mm B:2.0mm C:2.54mm D:0.8mm E:1.0mm F:1.7mm G:2.5mm 6.DIMENSION A/C/D 01 02 other dimension A/C/D requested by customer 7.PACKAGING 0:Bulk 2:Tape & Reel 3: Tube 5:Cap in Tape & Reel 8.R:RoHS
