1.27mm SIMM Socket Straight & R/A Type
Storage & Memory Card
SPECIFICATION
Material
- Insulator: LCP, UL94V-0 - Contact: Phosphor Bronze
Electrical
- Insulation Resistance: 1000MΩ Min - Contact Resistance: 20mΩ Max - Dielectric withstanding Voltage: 250V AC for 1 minute - Current Rating: 1 Amp - Operating Temperature: -55°C ~ 105°C
Request Quote

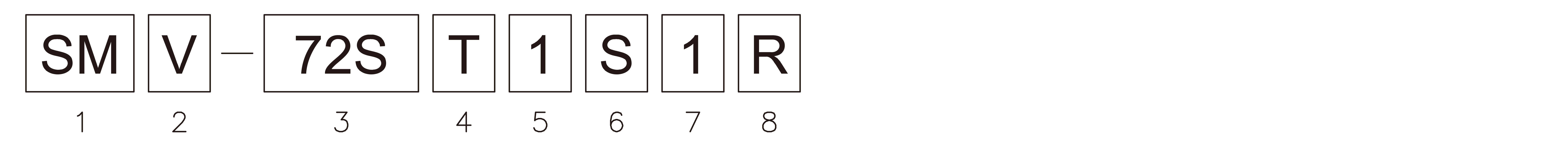

ORDER INFORMATION
A13.12
1.SERIES NO. SM:SIMM Socket 2.TERMINAL VERSION V:Straight Type L:R/A Type *Straight Type W/Metal Latch Standard, R/A Type W/Plastic Latch Reverse Version 3.NO. OF CONTACTS 72S:1x72pin 4.CONTACT PLATING T:Tin Plated 5.LATCH TYPE 0:Plastic 1:Metal 6.PACMAN VERSION S:Standard Type R:Reverse Type 7.PACKAGING 1:Tray 8.R:RoHS
