2.54mm Housing, Wafer & Terminal
Board/Wire to Board
SPECIFICATION
Material
- Housing: Nylon-66, UL94V-2, UL94V-0(H1) Rated - Terminal: Brass - Wafer: Nylon-66, UL94V-2(S, L, L1), UL94V-0(S1, L3) Rated - Wafer Contact: Brass
Electrical
- Insulation Resistance: 1000MΩ Min - Contact Resistance: 20mΩ Max - Dielectric Withstanding Voltage: 1000V AC for 1 minute - Current and Voltage Rating: 3 AMP AC/DC, 250V AC/DC - Operating Temperature: -25°C ~ 85°C * 254H(H1)-XX0-MXR Mating 254W Series
Request Quote

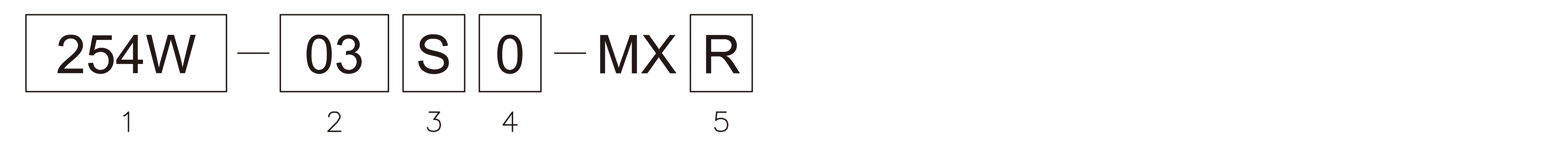

ORDER INFORMATION
A03.05
1.SERIES NO. 254W:Wafer 2.NO. OF CONTACTS 02-20 3.WAFER VERSION S:180° DIP S1:180° DIP L:90° DIP L1:90° DIP L3:Left Angle DIP 4.PACKAGING 0:Bulk 5.R:RoHS HOUSING 254H-XX0-MXR (XX:02~15pin) 254H1-XX0-MXR (XX:02~12pin) TERMINAL 254TMXR:Tin Plated 254TPMXR:Tin Plated (Stamping Before Plated)
