3.00mm Power Terminal
Standard I/O & Mechanical Components
SPECIFICATION
Material
- Contact: Phosphor Bronze
Electrical
- Contact Resistance: 20mΩ Max - Dielectric Withstanding Voltage: 1500V AC for 1 minute - Current Rating: 5 AMP AC/DC - Voltage Rating: 250V AC/DC - Operating Temperature: -25°C ~ 85°C
Request Quote

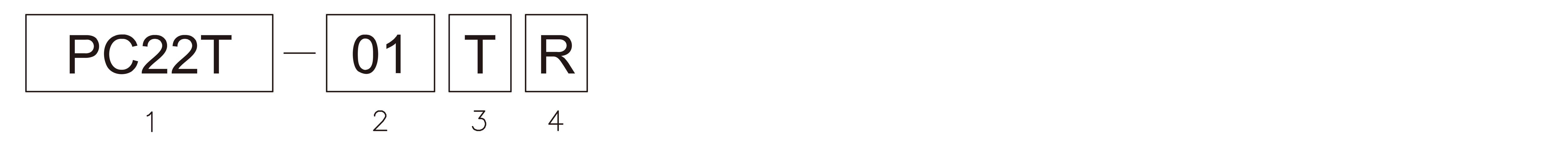

ORDER INFORMATION
A08.07
1.SERIES NO. PC22T:Male Terminal PC21T:Female Terminal 2.APPLICIATION WIRE 01:AWG24-20 3.CONTACT PLATING G:Gold Plated T:Tin Plated 4.R:RoHS
