FAKRA Connector 1pin Male PCB Straight Type I
Automotive, RF & Waterproof
SPECIFICATION
Material
- Insulator: Thermal Plastic, UL94V-0 Rated - Coding Insulator: PA, Color see Detail - Contact: Copper Alloy, Selective 6u” Gold Plated - Shell: Zinc Alloy
Electrical
- Insulation Resistance: 1000MΩ Min - Contact Resistance: 10mΩ Max - Dielectric Withstanding Voltage: 800V AC for 1 minute - Current Rating: 1.0 AMP Max - Voltage Rating: 335V AC - Operating Temperature: - 40°C ~ 105°C
Request Quote

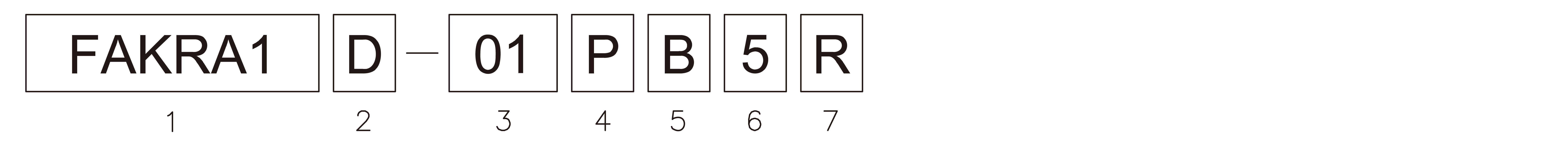

ORDER INFORMATION
D02.01
1. SERIES NO. FAKRA1 2. TERMINAL VERSION D: Straight Type 3. NO. OF CONTACTS 01 4. CONNECTOR TYPE P: Male 5. CODING TYPE & COLOR A Type: Jet Black B Type: Cream White C Type: Signal Blue D Type: Claret Violet E Type: Leaf Green F Type: Nut Brown G Type: Blue Gray H Type: Heather Violet I Type: Beige K Type: Curry L Type: Carmine Red M Type: Pastel Orange N Type: Pastel Green Z Type: Water Blue 6. PACKAGING 5: Cap in Tape & Reel 7. R: RoHS
