IEEE 1394 Connector 6pin Female PCB Straight Type
Industrial, Commercial & Legacy I/O
SPECIFICATION
Material
- Insulator: PBT, UL94V-0 Rated - Contact: Brass - Shell: Brass - Bottom Cover: PBT
Electrical
- Insulation Resistance: 100MΩ Min - Contact Resistance: 30mΩ Max - Dielectric Withstanding Voltage: 500V AC for 1 minute - Current Rating: 1.5 AMP Max - Voltage Rating: 40V Max - Operating Temperature: -25°C ~ 85°C * Mates with: IEEES-06P Series
Request Quote

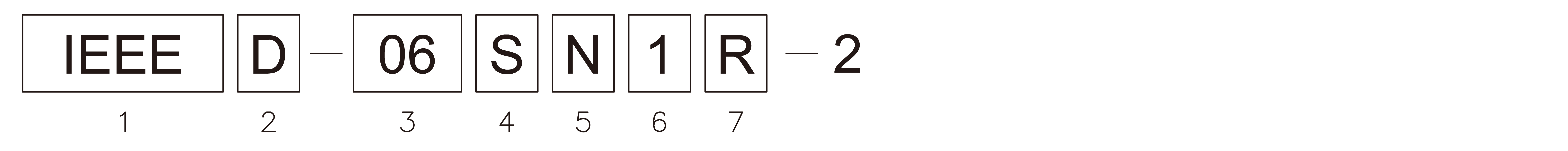

ORDER INFORMATION
B04.03
1.SERIES NO. IEEE:IEEE 1394 2.TERMINAL VERSION D:Straight 3.NO. OF CONTACTS 06:6pin 4.CONNECTOR TYPE S:Female 5.INSULATOR COLOR N:Black W:White 6.PACKAGING 1:Tray 7.R:RoHS
