Mini USB Connector 10pin Female PCB R/A SMT Type III
USB Type-C & Consumer HD Interface Connectors
SPECIFICATION
Material
- Insulator: LCP, UL94V-0 Rated - Contact: Phosphor Bronze - Shell: Brass - Mylar: PVC
Electrical
- Insulation Resistance: 100MΩ Min - Contact Resistance: 30mΩ Max - Dielectric Withstanding Voltage: 500V AC for 1 minute - Current Rating: 5 AMP - Operating Temperature: -30°C - 60°C
Request Quote

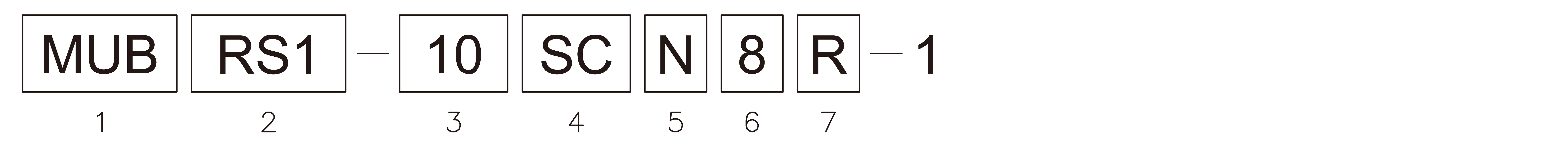

ORDER INFORMATION
B03.31
1. SERIES NO.: MUB: Mini USB Connector 2. TERMINAL VERSION: RS1: R/A SMT 3. NO. OF CONTACTS: 10: 10pin 4. CONNECTOR TYPE: SC: Female with SMT Type Metal Shell 5. INSULATOR COLOR: N: Black 6. PACKAGING: 8: Film in Tape & Reel 7. R: RoHS
