SATA Connector 7+15pin Female PCB R/A SMT Type
Storage & Memory Card
SPECIFICATION
Material
- Insulator: LCP, UL94V-0 Rated - Contact: Phosphor Bronze - Harpoon: Brass
Electrical
- Insulation Resistance: 1000MΩ Min - Contact Resistance: 30mΩ Max - Dielectric withstanding Voltage: 500V AC for 1 minute - Current Rating: 1.5 Amps - Operating Temperature: -55°C ~ 85°C
Request Quote

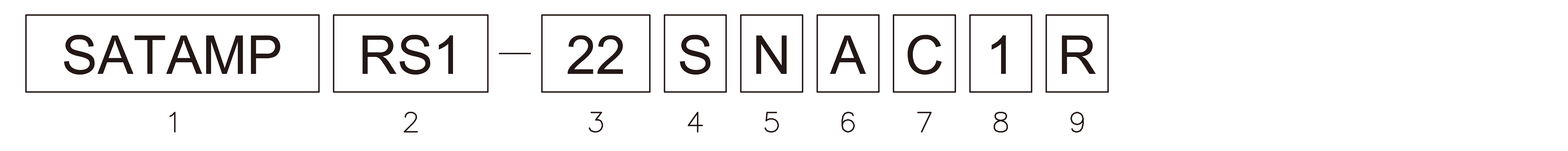

ORDER INFORMATION
A09.07
1.SERIES NO. SATAMP:with Metal Board Lock + Peg 2.TERMINAL VERSION RS1:R/A SMT Type 3.NO. OF CONTACTS 22:7+15pin 4.CONNECTOR TYPE S:Female 5.INSULATOR COLOR N:Black 6.BOARD MOUNT A:Standard Type 7.CONTACT PLATING G:Gold Flash A:Selective 5u" Gold Plated C:Selective 15u" Gold Plated 8.PACKAGING 1: Tray 3:Tube 9.R:RoHS
