USB 3.1 Type-C Connector 24pin Female PCB R/A Type I
USB Type-C & Consumer HD Interface Connectors
SPECIFICATION
Material
- Insulator: LCP, UL94V-0 Rated - Contact: Brass - Shell: Nickel Plated
Electrical
- Insulation Resistance: 100MΩ Min - Contact Resistance: 40mΩ Max - Dielectric Withstanding Voltage: 100V AC for 1 minute -Current Rating: 5 AMP Max. - Voltage Rating: 20V AC - Operating Temperature: -40°C ~ 105°C * Mates with: UB31CS-22P Series
Request Quote

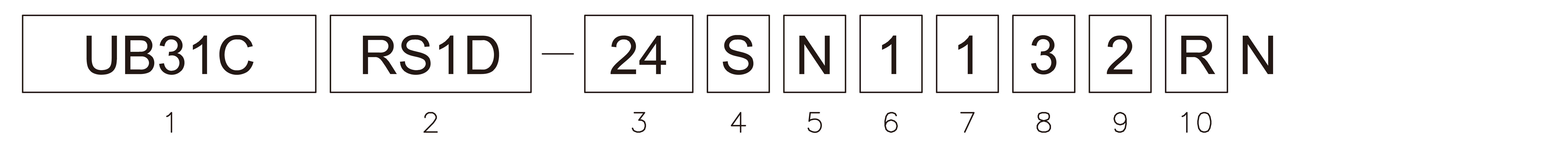

ORDER INFORMATION
B03.02
1.SERIES NO. UB31C:USB 3.1 Type-C (Insertion Distance 6.2mm) 2.TERMINAL VERSION RS1D:R/A SMT+DIP Type 3.NO. OF CONTACTS 24:24pin 4.CONNECTOR TYPE S:Female 5.INSULATOR COLOR N:Black 6.BACK SHELL 1:w/o 7.FOR PCB THICKNESS 1:1.0mm 2:1.6mm 8.CONTACT PLATING 3:30u"Pd-Ni+2u"Gold 9.PACKAGING 2:Tape & Reel 10.R:RoHS
